Solventni printeri

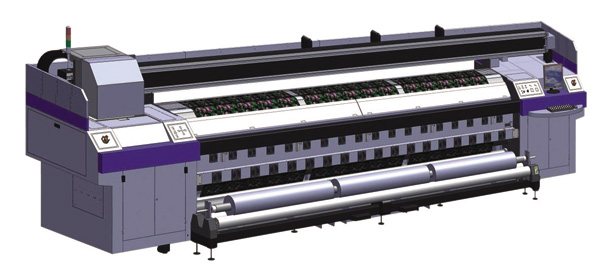

MBL 5000P

* Print head: 8-16 Spectra Polaris Piezoelectric Print Heads
* Print Color: 6 Colors
* Print resolution: 1440 x 800 dpi
* Print modes: Standard quality: 252 sqm/hr
* High quality: 170 sqm/hr
* Ultra quality: 122 sqm/hr
* Size: 810 x 170 x 210 cm
* Rigid media support: up to 500 cm wide, roll dimension 40cm, 360kg
* Ink system:  Solvent, pigment-based ink
* Power supply: 220V/5500W
MBL 5000P

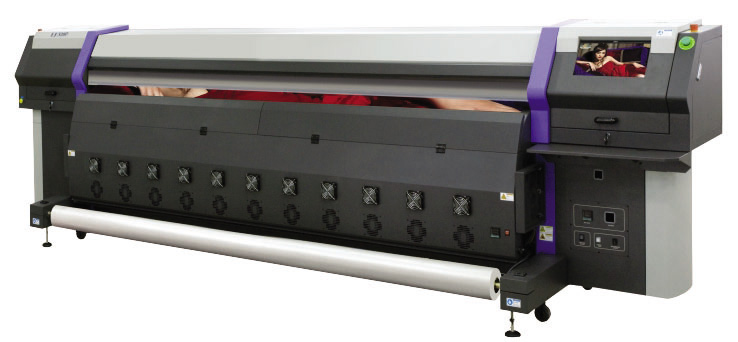

MBL 320P

* Print head: 2-8 Spectra Polaris Piezoelectric Print Heads
* Print Color: 4 Colors
* Print resolution: 1200 x 1200 dpi
* Print modes:
Draft quality: 110 sqm/hr (4 heads) 185 sqm/hr (8 heads)
Standard quality: 73 sqm/hr (4 heads) 125 sqm/hr (8 heads)
High quality: 55 sqm/hr (4 heads) 92 sqm/hr (8 heads)
Ultra quality: 38 sqm/hr (4 heads) 65 sqm/hr (8 heads)
* Size: 483 x 96 x 138 cm (4 heads), 483 x 137 x 138 cm (8 heads)
* Rigid media support: up to 330 cm wide, roll dimension 35cm, 100kg
* Ink system: Solvent, pigment-based ink
MBL 320P

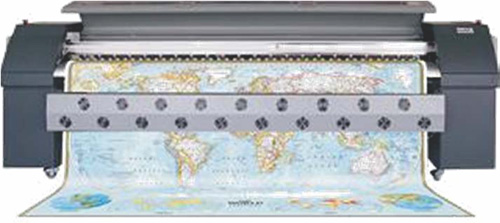

INFINITY/CHALLENGER Seiko SPT-510-35pl Heavy Duty Solvent Printers

Refer Photo Model No. Print Head Color Media Width Resolution Speed Size (Meter) Weight (kg)
L W H
FY-3204G 4 pcs
SEIKO
SPT 510		 4 color
C M Y K		 3.2 m 720dpi 2pass 64m2/h
3pass 52m2/h
4pass 42m2/h		 4.95 0.92 1.54 650
FY-3206G 6 pcs
SEIKO
SPT 510		 6 color
C M Y K LC
LM		 3.2 m 720dpi 2pass 64m2/h
3pass 52m2/h
4pass 42m2/h		 4.95 0.92 1.54 650
FY-3208G 8 pcs
SEIKO
SPT 510		 4 color
C M Y K		 3.2 m 720dpi 2pass 78m2/h
3pass 64m2/h
4pass 52m2/h		 4.95 0.92 1.54 650

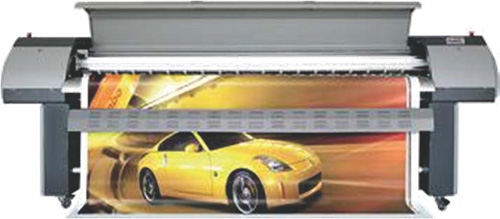

INFINITY/CHALLENGER Seiko SPT-510-35pl Light Duty Solvent Printers

Refer Photo Model No. Print Head Color Media Width Resolution Speed Size (Meter) Weight (kg)
L W H
FY-3204H 4 pcs
SEIKO
SPT 510		 4 color
C M Y K		 3.2 m 720dpi 2pass 62m2/h
3pass 49m2/h
4pass 39m2/h		 4.50 0.92 1.54 520
FY-3206H 6 pcs
SEIKO
SPT 510		 6 color
C M Y K LC
LM		 3.2 m 720dpi 2pass 62m2/h
3pass 49m2/h
4pass 39m2/h		 4.50 0.92 1.54 520
FY-3208H 8 pcs
SEIKO
SPT 510		 4 color
C M Y K		 3.2 m 720dpi 2pass 78m2/h
3pass 64m2/h
4pass 52m2/h		 4.50 0.92 1.54 520

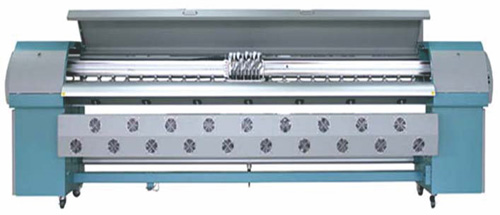

INFINITY/CHALLENGER Seiko SPT-510-50pl Heavy Duty Solvent Printers

Refer Photo Model No. Print Head Color Media Width Resolution Speed Size (Meter) Weight (kg)
L W H
FY-3276N 6 pcs
SEIKO
SPT 510-50PL		 6 color
C M Y K LC LM		 3.2 m 720dpi 2pass 69m2/h
3pass 57m2/h
4pass 43m2/h		 4.50 0.92 1.54 520
FY-3274N 4pcs
SEIKO
SPT 510-50PL		 4 color
C M Y K		 3.2 m 720dpi 2pass 69m2/h
3pass 57m2/h
4pass 43m2/h		 4.50 0.92 1.54 520
FY-3278N 8 pcs
SEIKO
SPT 510-50PL		 4 color
C M Y K		 3.2 m 720dpi 2pass 84m2/h
3pass 70m2/h
4pass 58m2/h		 4.50 0.92 1.54 520

Eco Solvent Printer 850E (with Epson DX5 Printhead)

Model No. 850E 850E1 850E2 3200E
Printing Technology The 5th Generation of Micro Piezo Technology
Printhead 4 pcs Epson DX5
(small type)		 1 pc Epson DX5
(normal type)		 2 pcs Epson DX5
(normal type)		 2 pcs Epson DX5
(normal type)
Number of nozzles 2160 nozzles total 1440 nozzles total 2880 nozzles total 2880 nozzles total
Speed (speed test is based on 1.75*5 meter picture) High Speed Mode
2 pass 22m2/hour		 High Speed Mode
2 pass 22.5 m2/hour		 High Speed Mode
2 pass 45 m2/hour		 High Speed Mode
2 pass 45 m2/hour
Standard Mode
4 pass (360 x 1080dpi)
11 m2/hour		 Standard Mode
4 pass (720 x 720dpi) 12 m2/hour		 Standard Mode
4 pass (720 x 720dpi) 22.5 m2/hour		 Standard Mode
4 pass (720 x 720dpi) 22.5 m2/hour
Photo Mode
4+1pass (720 x 1080dpi)
8.5m2/hour		 Photo Mode
8 pass (720 x 1440dpi)
5.7 m2/hour		 Photo Mode
8 pass (720 x 1440dpi)
11.2 m2/hour		 Photo Mode
8 pass (720 x 1440dpi)
11.2 m2/hour
Ink Colors 4colors : Cyan, Magenta, Yellow, Black
Printer Head height Adjustable 2~5mm
Resolution 1440dpi (Max)
Ink droplet size 1.5-21 pl
Printing width 1.80 M (Max) 3.18 M (Max)
Heating System The heaters for front and center platform separately. PID temperature control. Temperature range: 80 C max
Drying system External fan
Media Width: 1.82 M (max media width) 3.20 M (max media width)
Media Feeding Mode Automatic Feeder
Automatic Take Up EQUIPED
Media Types self-adhesive paper, PVC, mesh fabric, textile, PVC flex banner, Adhesive Vinyl , paper, fabric, leather etc.
Ink ECO solvent pigment ink / Sublimation ink / Water based dye ink
Ink Supply Mode Pipe based continues ink supply
Ink Cartridge 8 x 350ml Resillable Cartridges
RIP software iPrint 3.0 / Photoprint (Optional)
Format Tiff, Jpeg and other common image formats
PostScript file Optional
Color Mode RGB or CMYK
Control Software A-Starjet5 Control Software
Interface USB 2.0 RS232
Operating System Windows XP, Windows 7
Voltage AC 220-240V 50/60HZ or AC 110-120V 50/60HZ
Power Consumption Power: 1KW (Max), 300W (Printing)
Temperature 20-25C
Humidity 40~70 % Non-condensing
Printer Dimension W x D x H  2,840 x 900 x 1,250 mm (bracket included) 3,840 x 900 x 1,250 mm
Packing Dimension W x D x H  3,000 x 930 x 730mm 4,400 x 930 x 730mm
Net Weight 260 kg (bracket included) 460 kg  (bracket included)
Gross Weight 320 kg (bracket included) 550 kg  (bracket included)
  1.8 meter, 4 small printheads 1.8 meter, 1 big printhead 1.8 meter, 2 big printheads 3.2 meter, 2 big printheads

Eco solvent printer Eco solvent printer Eco solvent printer

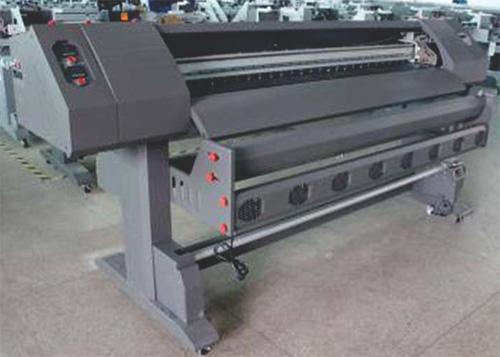

Eco Solvent Printer DX7 Series (with Epson DX7 Printhead)

Refer Photo Model No. Print Head Color Media Width Resolution Speed Size (Meter) Weight (kg)



 L W H
A-Starjet 7701 1 pc -- DX7 4 color
C M Y K		 1.8 m 1440dpi Draft 25m2/h
Standard17m2/h
High Quality 8m2/h		 2.84 0.90 1.25 320
A-Starjet 7702 2 pc -- DX7 4 color
C M Y K		 1.8 m 1440dpi Draft 48m2/h
Standard 25m2/h
High Quality 13m2/h		 2.84 0.90 1.25 320
A-Starjet 7702L 2 pc -- DX7 4 color
C M Y K		 3.2 m 1440dpi Draft 50m2/h
Standard 27m2/h
High Quality 15m2/h		 4.30 0.90 1.25 550



Eco Solvent Ink Epson DX7 Printhead

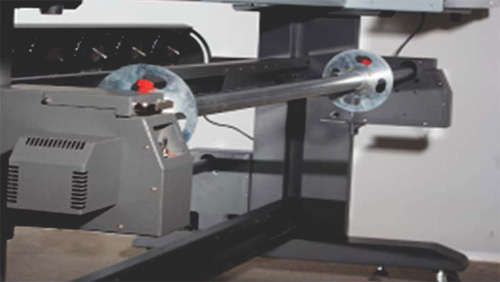

Take Up Sysem Equiped.
ECO solvent ink / Sublimation ink / Water based dye ink

* All above printers include 1 accessory box, English software CD, Rip software, operation manual
Eco Solvent Ink Epson DX7 Printhead
