Mašine za sečenje folije i papira

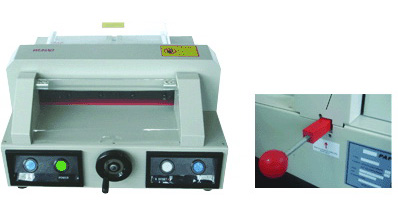

MBL-330 A3

* Paper specification: A3
* Cutting thickness: 30 mm
* Pressure paper: Automatic
* Size: 370x630x725mm
MBL-330 A3

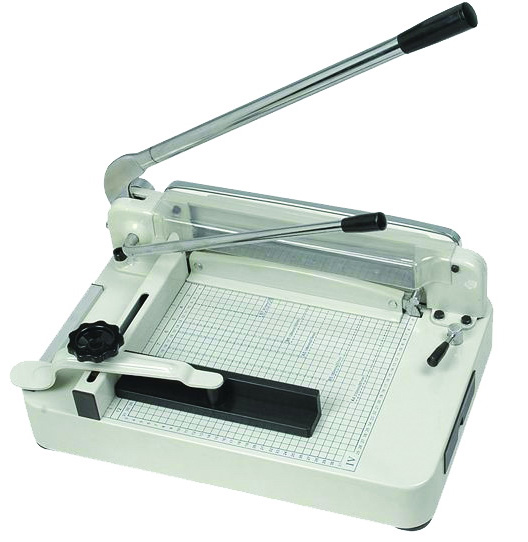

MBL-868 A3

* Paper specification: A3
* Cutting thickness: 400 sheets (80 gsm)
* High precission, multi protection, durable
* Weight: about 38 kgs
MBL-868 A3

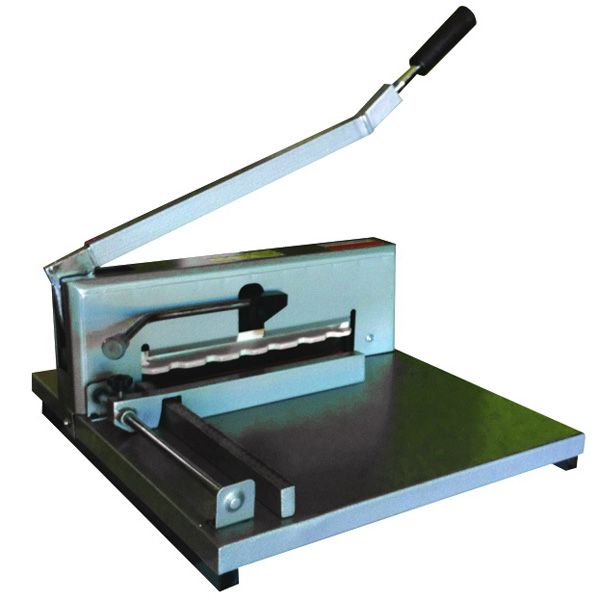

MBL-3203A

* Cutting lenght: 320mm
* Cutting thickness: 30mm
* Ray - guided, safe and reliable
* Weight: about 30 kgs
MBL-3203A

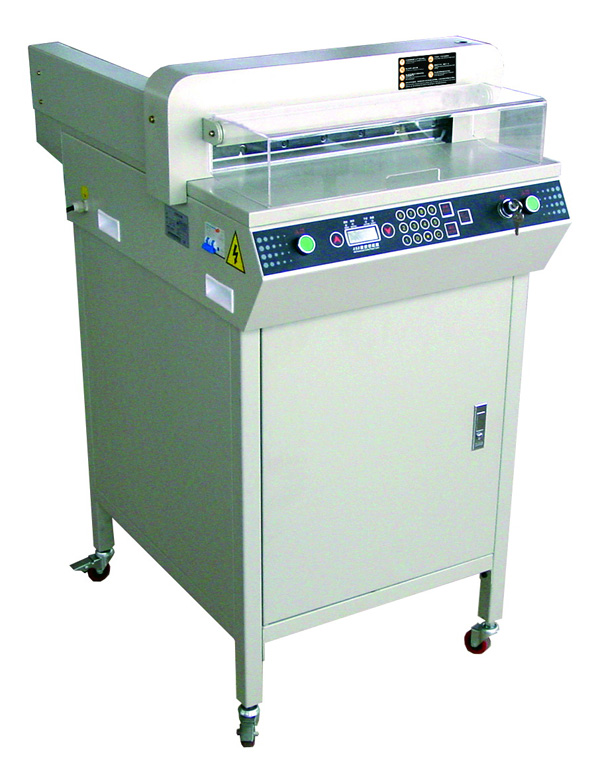

MBL-450T3

* Max cutting size: 450x450mm
* Max cutting thickness: 40mm
* Cutting precision: <0.6mm
* Press paper way: automatic
* Push paper way: automatic
* Cutting length behind knife: 450mm
* Table length in front knife: 20mm
* Power: AC220V±10% 50Hz Or 110V 60Hz 900W
* Size: about 670x1090x710mm
MBL-450T3

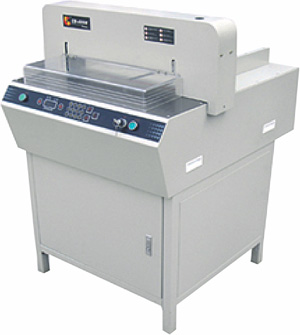

MBL-480H

* Max cutting size:  485x485mm
* Min cutting size: 30mm
* Cutting Thickness: 60mm
* Cutting precision: ±0.3mm
* Press paper way: Automatic
* Push paper way: Numeric Control
* Programme: x
* Display: Numeral
* Power: AC220V±10% 50Hz 1200W
* Size: 920x795x1240mm
* Net weight: 154 kgs
MBL-480H

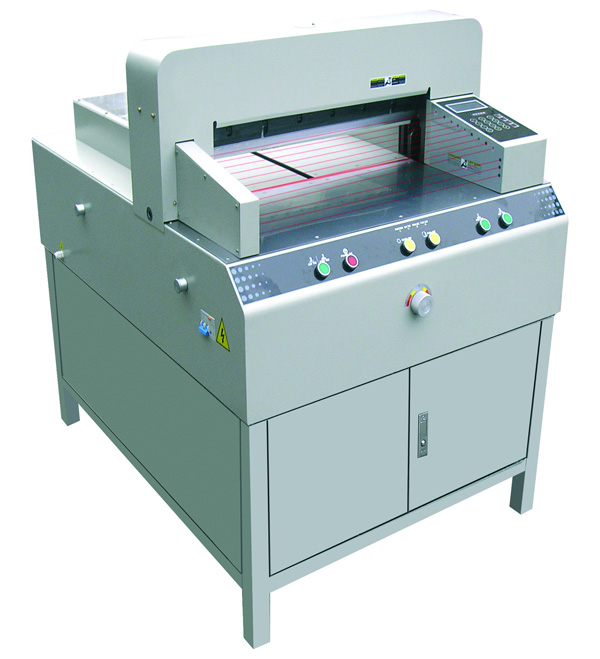

MBL-520V+

* Model: CB-520V+
* Max cutting size: 520x520mm
* Min cutting size: 30mm
* Max cutting thickness: 65mm
* Cutting precision: <0.3mm
* Press paper way: automatic (programmed)
* Push paper way: automatic (programmed)
* Cutting length behind knife: 550mm
* Table length in front knife: 24.50mm
* Display: liquid crystal
* Programe: yes
* Power: AC220V±10%50Hz or 110V 60Hz 1300W
* Size: 1090x800x1160mm
* Net weight: about 285kgs
MBL-520V+

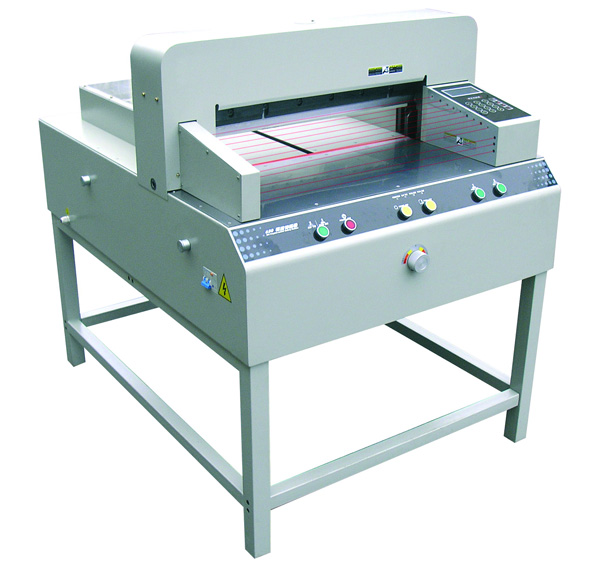

MBL-670V+

* Max cutting size: 670x670mm
* Min cutting size: 30mm
* Max cutting thickness: 80mm
* Cutting precision: <0.2mm
* Press paper way: automatic (programmed)
* Push paper way: automatic (programmed)
* Cutting length behind knife: 670mm
* Table length in front knife: 29mm
* Display: liquid crystal
* Programme: yes
* Power: AC220V±1o% 50Hz or 110V 60Hz 1600W
* Size: 1280x980x1200mm
MBL-670V+

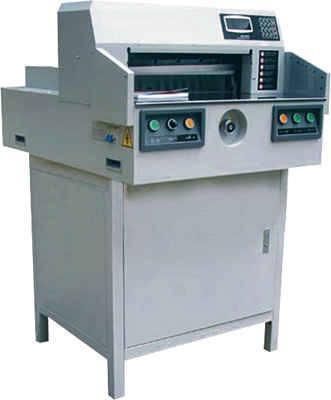

MBL-480Z3

* Max cutting size: 480x480mm
* Min cutting size: 30mm
* Cutting Thickness: 60mm
* Cutting precision: ±0.2mm
* Press paper way: Electric motor
* Push paper way: Programmed
* Programme: yes
* Display: LCD
* Power: AC220V±10% 50Hz 1100W
* Size: 950x780x1225mm
MBL-480Z3



Hydraulic Cutter

* Max cutting size: 670mm*670mm
* Min cutting size: 30mm
* Max cutting size: 80mm
* Precise: ±0.3mm
* Press paper way: Automatic
* Push paper way: Programmed(8*9)
* Display: Liquid crystal
* Power: 220v(110v) ±10% 50Hz(60Hz) 1700w
* Machine size: 1150mm*1490mm*1000mm
* Net weight: 350kg

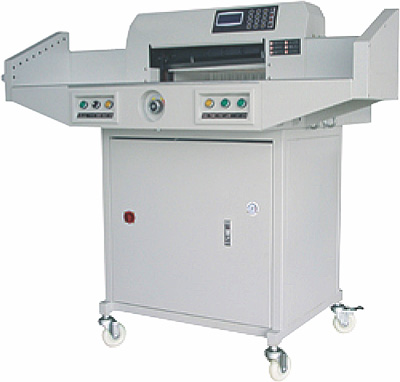

MBL-R670V2

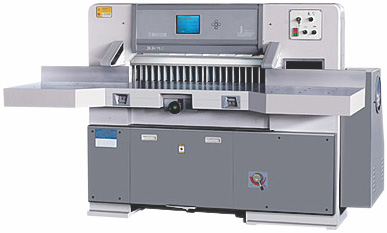

Hydraulic Double Digit-display Paper Cutter

* Cutting width: 1150 mm
* Max. cutting height: 160 mm
* Pressing plate: 1150 mm
* Min. cutting depth: 30 mm
* Extended length of working table: 730 mm
* Height of working table: 890 mm
* Cutting speed: 45 r/min
* Max. paper pressure: 40000 N
* Power of main motor: 4 kW
* Motor of paper feeding:  0.55 kW
* Air pump: 0.75 kW
* Machine weight: 3700 kg
MBL-115

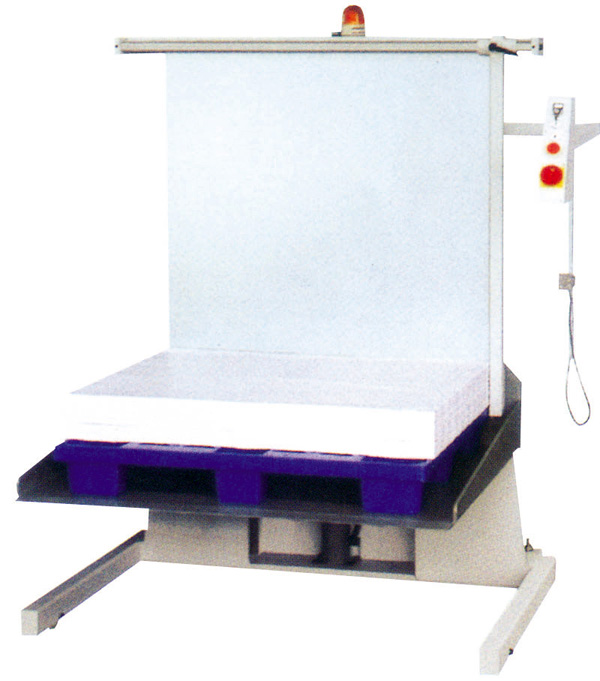

MBL-DG1000-4

* Max. Pallet size: 980x1270 mm
* Max. Paper size: 930x1220 mm
* Max. Lifter height: 900 mm
* Max. Loading: 1000 kg
* Power: 1000 kg
* Net weight: 900 kg
* Overall dimension (LxWxH): 1900x1800x2000mm
MBL-DG1000-4

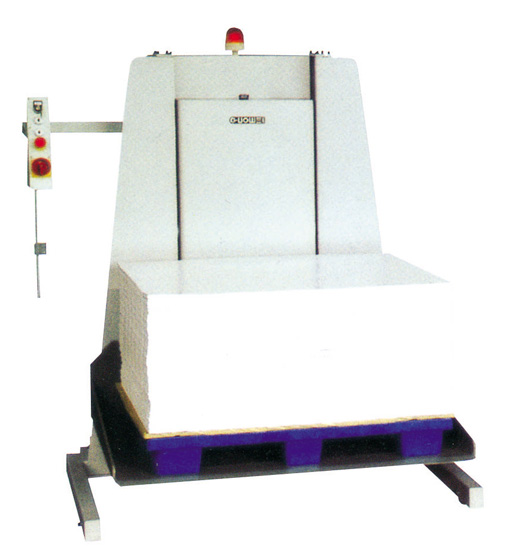

MBL-LG1000-4

* Max. Pallet size: 980x1270 mm
* Max. Paper size: 930x1220 mm
* Max. Lifter height: 900 mm
* Max. Loading: 1000 kg
* Power: 1000 kg
* Net weight: 900 kg
* Overall dimension (LxWxH): 1900x1800x2000mm
MBL-LG1000-4

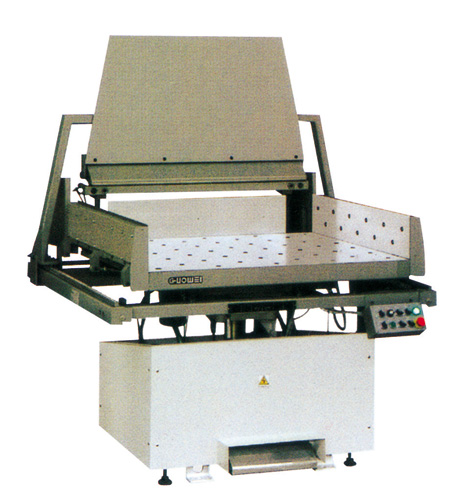

MBL-RG-4

* Max. Paper size: 1150x900 mm
* Max. Pile height: 165 mm
* Table height (adjustable): 840-970 mm
* Power: 1.9 kW
* Net weight: 420 kg
* Main motor: 0.75 kW
* Overall dimension (LxWxH): 1750x1530x2000mm
MBL-RG-4

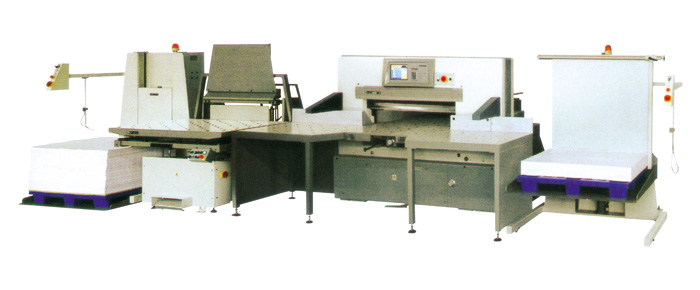

MBL-Cutting line

MBL-Cutting line

Cutting line is composed of lifter, jogger and microcomputer program-control paper cutter. It can achieve loading & unloading, sort-out, carrying, stacking, etc. for high efficiency, lower intensity of labor as well as decreasing the cost of production.
