Mašine za lasersko 3D graviranje u kristalu

	* Laser medium: Diode pump * Engraving range: 110x90x100 * Engraving speed: 1000dot/second * Laser head: 1 * Cooling Way: Air cooling * Dimension: 730x450x600

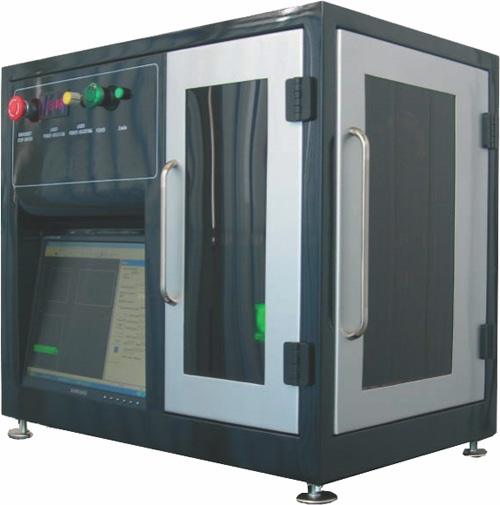

MBL DP-521K

	* Laser medium: Diode pump * Engraving range: 300x200x80(mm) * Engraving speed: 2000dot/seconds * Laser head: 1 * Cooling Way: water cooling * Dimension: 850x730x650 * Weight: 120

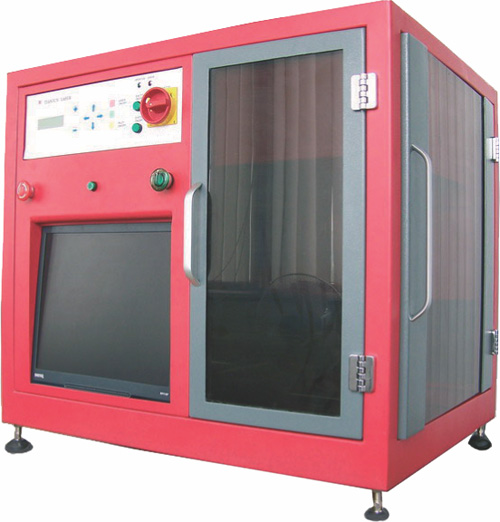

MBL TJ DP-522K

	* Laser medium: Diode pump * Engraving range: 300x200x80 * Engraving speed: 3000dots/second * Laser head: 1 * Cooling Way: water cooling * Dimension: 730x500x600 * Weight: 103

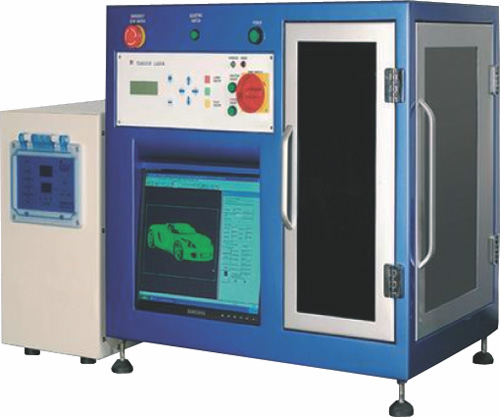

MBL TJ DP-523K

	* Laser medium: Xe-lamp Yag rod * Engraving range: 300x200x80(mm) * Engraving speed: 400 dots/second * Laser head: 1 * Cooling Way: water cooling * Dimension: 780x660x1215(mm) * Weight: 203

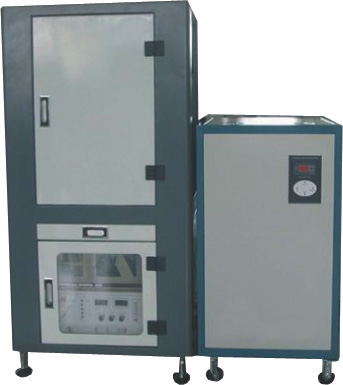

MBL YAG 524B

	* Laser medium: Xe-lamp Yag rod * Engraving range: 280x280x90(mm) * Engraving speed: 200 dot/second * Laser head: 3 * Cooling Way: water cooling * Dimension: 850x750x1348(mm)

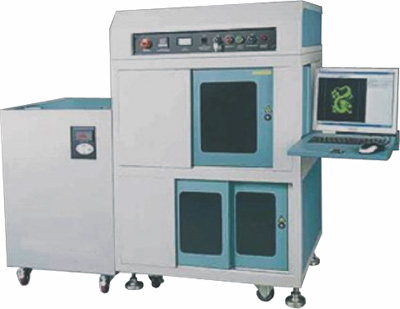

MBL YAG 505B

	* Laser medium: Xe-lamp Yag rod * Engraving range: 300x300x90(mm) * Engraving speed: 100 dot/second * Laser head: 8 * Cooling Way: water cooling * Dimension: 980x860x1200 * Weight: 238

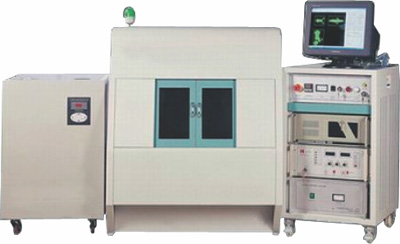

MBL YAG 504C

	* Field: 895x715 (mm) * Resolution: 0.7(mm) * Stand Off Distance: 800 (mm) * Ref. Distance: 1100(mm) * Texture: 1280X1024 (mm)
MBL Mega II

	* Field: 700 x 525 (mm) * Resolution: 0.7 mm * Stand Off Distance: 900 (mm) * Ref. Distance: 1150 (mm) * Texture: 1280x960 (mm) * People Captured: 1 to 3 * Geometry: 0.3 M
MBL Cyclops II

Model	TJDP-523K	TJDP-522K	TJDP-521K	TJYAG-524	TJYAG-505B	TJYAG-504C	TJYAG-508
Laser medium	Diode pump	Diode pump	Diode pump	Xe-lamp and Yag rod	Xe-lamp and Yag rod	Xe-lamp and Yag rod	Xe-lamp and Yag rod
Consumable	No	No	No	Xe-lamp	Xe-lamp	Xe-lamp	Xe-lamp
Original place of Laser medium	German	German	Italy	China	China	China	China
Scanner	German	China	China	China	No	No	No
F-theta lens(mm)	German F:100 or 160	German F:100	German F:100 or 160	China F:100	No	No	No
Consumable part Spanlife	8000 hours			24 hours Continuous working for two months, (2 pcs Xe-lamps for free with laser machine)
Frequency	3000 Hz	2000 Hz	1000 Hz	400 Hz	200 Hz	100 Hz	100 Hz
Laser wavelength	532nm green laser
Engraving speed (dots/min)	120000-180000	100000-120000	50000-60000	18000-24000	6000-10000	4000-6000	4000-6000
Laser heads	1	1	1	1	3	8	16
Engraving range	70x70x100mm F-theta lens 100	300x200x80mm F-theta lens 100	70x70x100mm F-theta lens 100	300x200x80mm F-theta lens 100	280x280x90mm Focus lens 100	300x300x90 Focus lens 1000	280x280x90 Focus lens 100
			110x90x100mm F-theta lens 160
Engraving time	558 Crystal 1min	558 Crystal 2mins	558 Crystal 3mins	558 Crystal 7.5mins	558 Crystal 15mins	558 Crystal 30mins	558 Crystal 30mins
Engraving time	321 keychain 15s	321 keychain 20s	321 keychain 40s	321 keychain 1.6mins	321 keychain 3.0mins	321 keychain 6 mins	321 keychain 6 mins
Working way	1 scanner	1 scanner +X-Y-Z	1 scanner	1 scanner +X-Y-Z	X-Y-Z worktable	X-Y-Z worktable	X-Y-Z worktable
Repeated location accuracy	10µ m	10µ m	10µ m	10µ m	10µ m	10µ m	10µ m
Continuous working time	>12hours	>12hours	>12hours	>12hours	>12hours	>12hours	>12hours
Power consumption	1KW	1.6KW	1KW	5.5KW	3.5KW	3.5KW	7KW
Cooling way	Water-cooling	Water-cooling	Air-cooling	Water-cooling	Water-cooling	Water-cooling	Water-cooling
Power supply	AC 220V or 110V+- 10% 50Hz or 60Hz
Warranty	One year	One year	One year	One year	One year	One year	One year
Dimension of 3D laser machine	730x500x600	850x730x650	730x450x600	1215x780x660	850x750x1348	980x860x1200	1720x650x1460
Weight (kg)	103	120	82	203	270	238	340
Computer	CPU:P4 2.8G, Memory 1G,Harddisk 80G,15"LCD				CPU:P4 2.8G, Memory 1G,Harddisk 80G,17"LCD (508 15"LCD)
Software	Laser photo, Laser image, Laser control (This software is developed by Tianjun)
Circumstance temperature	15-30C	15-30C	15-30C	15-30C	15-30C	15-30C	15-30C
Relative humidity	<75%	<75%	<75%	<75%	<75%	<75%	<75%
Training time	3 days	3 days	3 days	7-9 days	7-9 days	7-9 days	7-9 days
Machine picture
Sample picture
